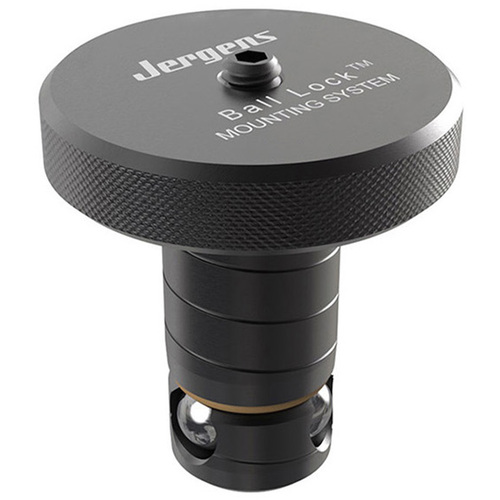

Shank, 50 mm Shank Diameter × 1″ Fixture Plate Thickness, 4340 Steel, Black Oxide Finish

Type | Shank | Head Diameter | 3″ |
System Compatibility | Ball Lock® | Length Under Head | 2.7″ |
Fixture Plate Thickness | 1″ | Hex Wrench Size | 3/8″ |
Shank Diameter | 50 mm | Max Holddown Force | 20,000 lbs |
Material | 4340 Steel | Recommended Screw Torque | 38 ft-lbs |
Finish | Black Oxide | Repair Kit Part Number | 49942 |
Head Thickness | 3/4″ |
Product Features
Remarks | •Material: Shank/Bushing, 4340.
•Finish: Black Oxide.
•Heat Treat:
•Shanks, RC 40-45.
•Bushings, RC 50-54.
•Liners, RC 62-64.
•Operating temperature range: -30°C to 200°C. | Country of Origin | USA |
Shipping Info
Package Weight
3.607
