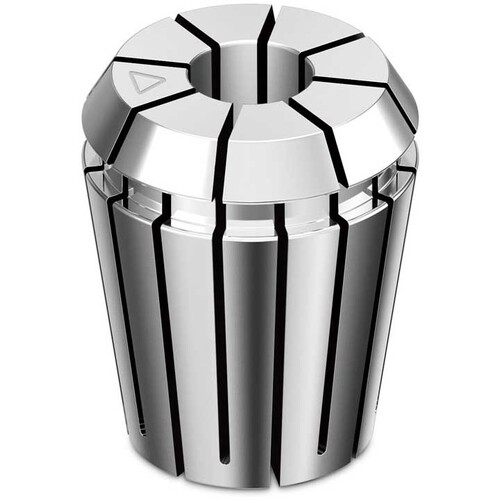

10 Pc. Collet Set - .5mm-10mm - ER16 Style Collet
Additional Tariff Surcharge of 7.5 %
| Diameter Range | 0.5 mm - 10 mm | Tool Type | ER |
| Quantity | 10 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Shank Size (SS) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | .5 mm |
Product Features
| Remarks | •TIR of 0.0004? or better over the full clamping range at 4XD
•All collets have a large clamping range, so less inventory is required
•Superior surface finish for better fit and TIR
•Up to 20% more clamping length than other brands
•Lot Numbers for lot traceability
•Easy to read size markings
•Made from Special Vibration Damping Material |
Country of Origin | Switzerland |
Shipping Info
Package Length
12.10000
Package Width
2.10000
Package Height
1.80000
Package Weight
.600
