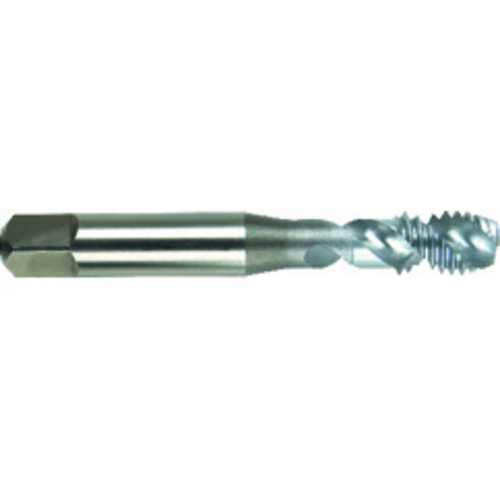

‎1/4″ - 20 NC 2-Flute, H3 Modified Bottoming Series/List # 2093S Spiral Flute Tap

Item # MT3360783

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 60783

UPC #: 686125607838

Quantity Available

Virtual Catalog

Thread Diameter Size (TDZ)

1/4″

Special Feature

High Performance

Threads per Inch (TPI)

Tool Type

High Performance Tap

Thread Standard

Chamfer

Semi-Bottoming

Overall Length (OAL)

‎2-1/2″

Coating

CrN

Thread Cutting Part Length (THL)

7/16″

Flute Type

Spiral-45 Degree

Flute Count (NOF)

Style

Modified Bottoming

Flute Helix Angle (FHA)

48 Degrees

Measurement Type

Inch

Applicable Material

| Aluminum / Non-Ferrous Materials |

ToolTypeName

Spiral Flute Taps

Cutting Edge Material

HSS-PM

Series/List #

2093S

Thread Tolerance Class (TCTR)

Product Features

Remarks

‎• HPT†- High Performance Tap - Aluminum• Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys.• Spiral Flute Taps are designed to lift the chips out of the hole in blind hole tapping, eliminating chip evacuation problems which can result in damaged threads and broken taps. They will also bridge openings, keyways and other interruptions in the tapped hole.• Semi-Interrupted Thread (3-Flute taps only)• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.00000

Package Width

.40000

Package Height

.40000

Package Weight

0.04
