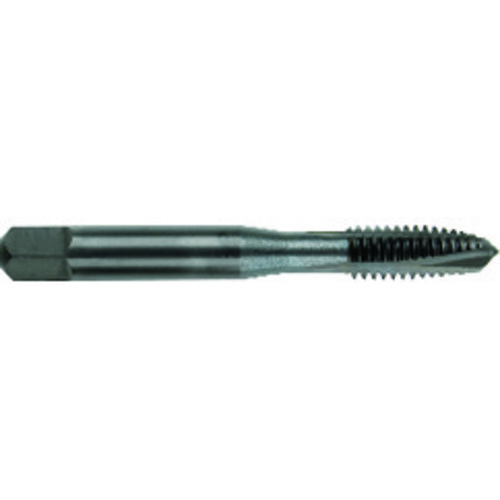

M6 3-Flute, D5 Series/List # 2095M Spiral Flute Tap
| Thread Diameter Size (TDZ) | M6 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Chamfer | Plug |
| Overall Length (OAL) | 2-1/2″ | Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 5/8″ | Flute Type | Straight |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSS-PM | Series/List # | 2095M |
Product Features
| Remarks | •High Performance Tap - Exotic Alloys •Recommended for steels, steel alloys, stainless steels, titanium alloys, nickel and nickel base alloys, other exotic alloys and wide variety of materials up to 32Rc hardness. •SpiralPoint Taps •are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. •PlugStyle •(3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance. •CNC Reduced Neck Design •enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. •P/M Powder Metallurgy High Speed Steel •Premium Steel Engineered For: Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity | Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.05
