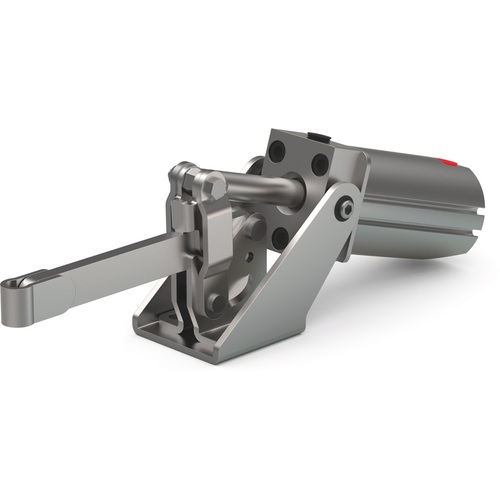

807-SE PNEUMATIC TOGGLE CLAMP WITH
| Type | Pneumatic Toggle Clamp | Travel During Rotation | 103° |
| Style | Pneumatic Hold Down Clamp | Distance Body Side to Piston Rod Centerline | 1.03 |
| Capacity | 500 lbs | Maximum Arm Length | 2.51 |
| Clamping Force | 540 lbs at 5bar | Cylinder Width | 2.26 |
| Clamping Arm Length | 2.51 | Model No | 807-SE |
| Maximum Opening | 103° | Arm Supplied | Solid Arm |
| Base Width | 2 | Maximum Holding Force | 500 lbs |
| Length | 9.33 | Clamp Arm Width | 0.25 |
| Height | 3 | Clamp Arm Height | 0.63 |
| Width | 2.06 | Clamp Height | 3 |
| Mount Diameter | 0.28 | Distance from Bottom to Extend Port Center | 1.38 |
| Mounting Length | 0.75 | Cylinder Height | 3 |
| Mounting Width | 1.25 | Arm Width | 0.25 |
| Overall Length | 9.33 | Temperature Range | -14°F to 194°F |
| Overall Height | 3 | Function | Hold down action |
| Overall Width | 2.06 | Series | 807 |
| Bore Size | 1.26 | For Use With | 810 Series Switches |
| Port Size | G1/8 | Weight | 1.66 lbs |
| Hole Size | 0.28 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.3000
